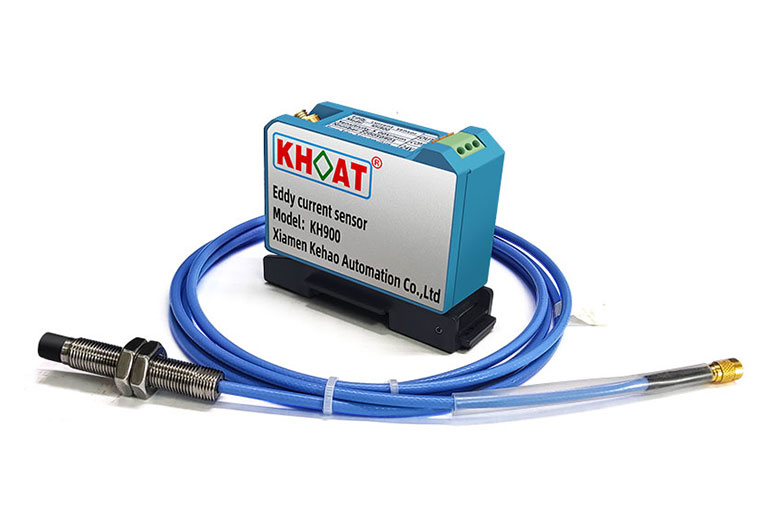

Eddy current sensors
Specification
|
Output |
-24V power supply，-2 to -18V output |
|
Probe selection（mm） |
Φ5 | Φ8 | Φ11 | Φ18 | Φ25 |
|
Range selection |
1 | 2 | 4 | 8 | 10 |
|
linearity |
≤1% |
Introduction

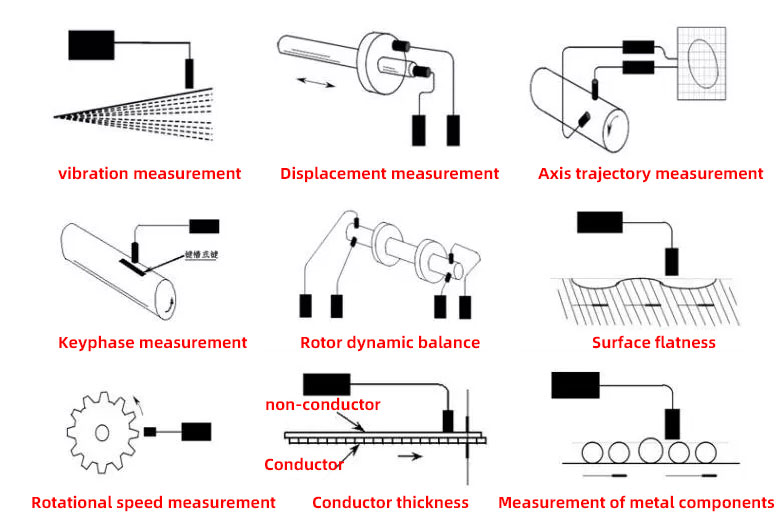

Eddy current sensors can accurately measure the distance between the measured object (which must be a metal conductor) and the end face of the probe. They are mainly used for vibration and displacement measurement of bearing machinery, as well as keyphase and velocity measurement.

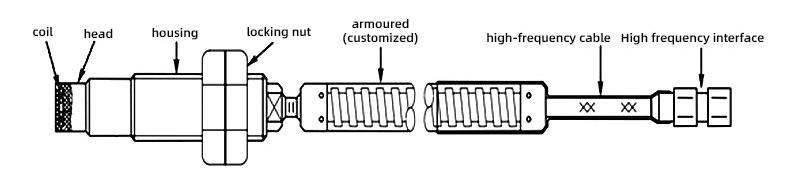

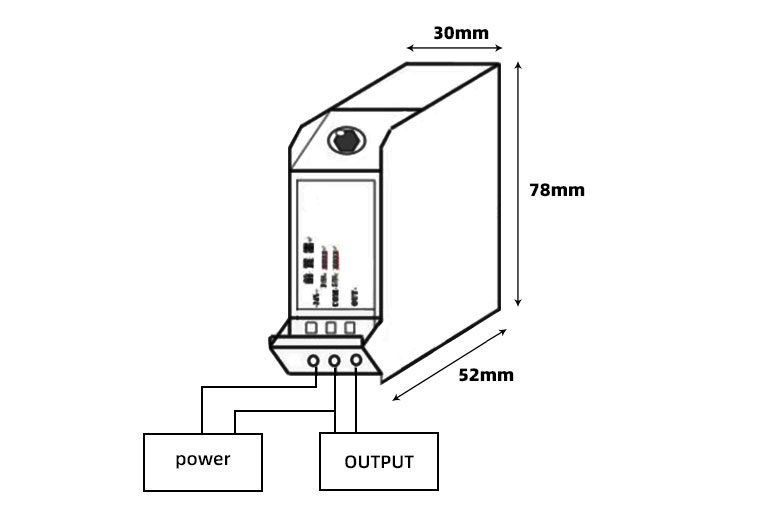

size
install
