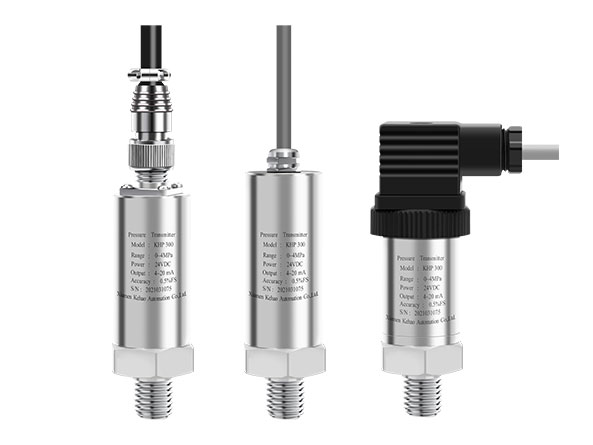

Small volume Pressure transmitter
The pressure transmitter adopts a piezoelectric sensor with a stainless steel isolation diaphragm as a signal measuring element, and though the computer-auto-test. Temperature compensation of the zero point and the sensitivity of the temperature range is carried out by using a laser trimming process. Amplifier circuit is located in the … -
Diffuse silicon pressure transmitter
Specification Range 100mV/g Type Gauge pressure, absolute pressure, sealed Output 0~5V 、1~5V、0~10V、4~20mA Compensation temperature -10~70℃ Operation temperature -20~85℃ Overload pressure 0.035…10MPa（150%FS）10…60MPa（125%FS） Accuracy 0.5% F.S; 0.2%F.S,0.25%F.S, optional Introduction 0.2 level high-precision imported diffusion silicon wafer 4-20mA, 0-5V, 0-10V output diffusion silicon pressure transmitter size install -

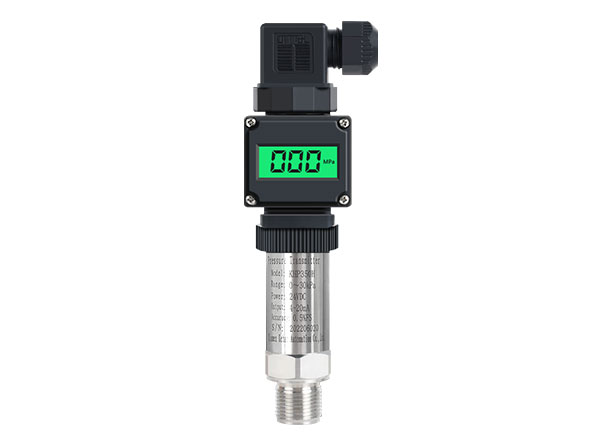

LED digital display diffused silicon pressure transmitter with
Specification Range -100kpa~4kpa~100Mpa Type Gauge pressure, absolute pressure, sealed Output 0~5V 、1~5V、0~10V、4~20mA Compensation temperature -10~70℃ Operation temperature -20~85℃ Pressure overload 0.035…10MPa（150%FS）10…60MPa（125%FS） Power 10-32V (4…20mA);12-32V (0…10V);8-32V (RS485) Introduction LED digital display diffused silicon pressure transmitter with 4-20mA, 0-5V, 0-10V output accuracy of 0.2 level size install -

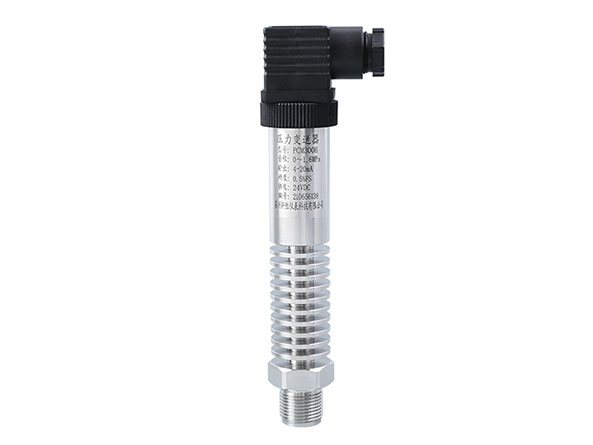

High temperature pressure transmitter
Specification Range -100kpa~0-20kpa~100Mpa Type Gauge pressure, absolute pressure, sealed Output 0~5V 、1~5V、0~10V、4~20mA Compensation temperature -20~85℃ Operation temperature -40~300℃ Overload pressure 0.035…10MPa（150%FS）10…60MPa（125%FS） Power 10-32V（4…20mA）；12-32V（0…10V）；8-32V（RS485） Introduction High temperature pressure transmitter, steam pressure transmitter, oil pressure transmitter, diffusion silicon Pressure sensor size install -

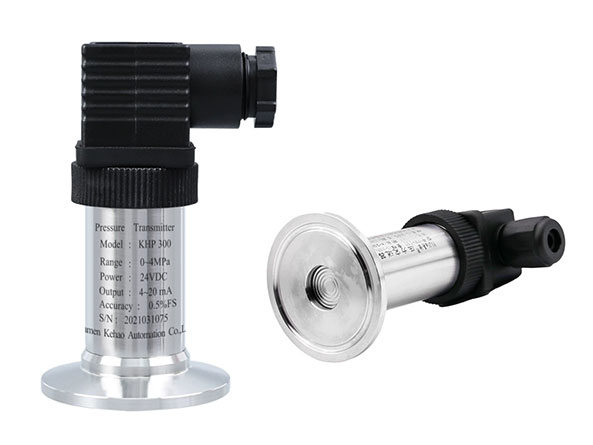

Sanitary pressure transmitter
Specification Range -100kpa~4kpa~100Mpa Type Gauge pressure, absolute pressure, sealed Output 0~5V 、1~5V、0~10V、4~20mA Compensation temperature -10~70℃ Operation temperature -20~85℃ Pressure overload 150%FS Power 10-32V（4…20mA）；12-32V（0…10V）；8-32V（RS485） Introduction Hygienic pressure transmitter with flush film in the pharmaceutical and food industry, quick installation with chuck type installation size install -

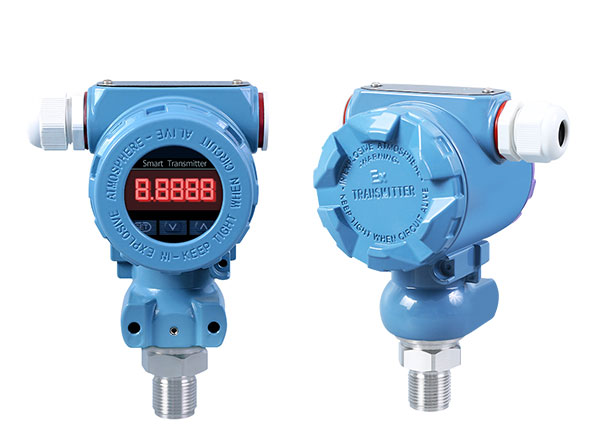

Explosion proof pressure transmitter
Specification Range -100kpa~0-1kpa~100Mpa Type Gauge pressure, absolute pressure, sealed Output 0~5V 、1~5V、0~10V、4~20mA Compensation temperature -10~70℃ Operation temperature -20~85℃ Protection grade IP67 Power 10-32V（4…20mA）；12-32V（0…10V）；8-32V（RS485） Introduction Explosion proof pressure transmitter All stainless steel marine explosion-proof diffused silicon pressure transmitter size -
Explosion proof LCD digital pressure transmitter
Specification Range 100mV/g Type Gauge pressure, absolute pressure, sealed Output 0~5V 、1~5V、0~10V、4~20mA Compensation temperature -10~70℃ Operation temperature -20~85℃ Overload pressure 0.035…10MPa（150%FS）10…60MPa（125%FS） Accuracy 0.5% F.S; 0.2%F.S,0.25%F.S, optional Introduction 0.2 level high-precision imported diffusion silicon wafer 4-20mA, 0-5V, 0-10V output diffusion silicon pressure transmitter size install -

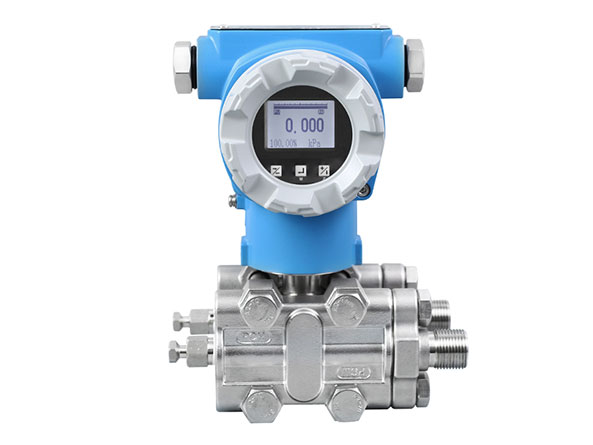

differential pressure transmitters
Specification Range -100kPa 0-100Pa 7MPa Type Gauge pressure and differential pressure Output 4-20mA+Hart, RS485 Compensation temperature -40~70 ℃ Operation temperature -40~80 ℃ Sampling time 20 times per second Accuracy level 0.1% FS, 0.075% FS (typical), 0.05% FS Introduction differential pressure transmitter measures the height of the tank body according to … -
Wika Digital Pressure Switch
PSD-4The pressure switch is inPSD-30The original Comfy Basics has been further developed,PSD-30The pressure switch has gained recognition for its excellent functional design“iFProduct Design Award”.PSD-4The accuracy of the switch is as high as0.5%,Freely configurable output signal(PNP/NPN, 4 … 20 mA/0 … 10 V),5:1Expandable Analog Output,AdditionallyPSD-4Also has excellent self-diagnosis function,Can provide customers …
