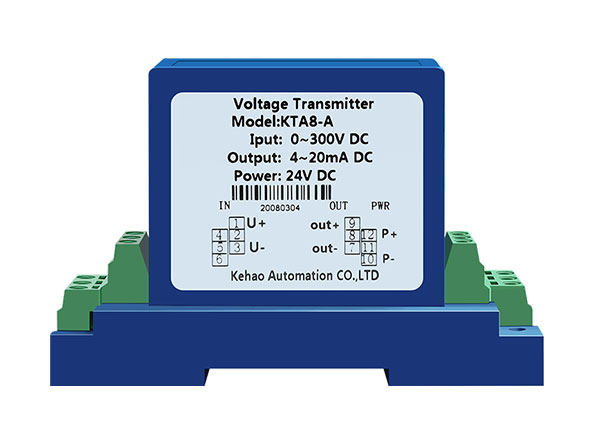

Voltage transmitter
Specification Accuracy 0.5% Linearity 0.1% Power DC12-24V / AC 110-220V Measure 0V~1200V Way Wiring type Output 4~20mA or other Overload capacity 2x nominal input sustainable Introduction A device that converts the measured AC voltage, DC voltage, and pulse voltage into a linear proportional output of DC voltage or DC current, … -

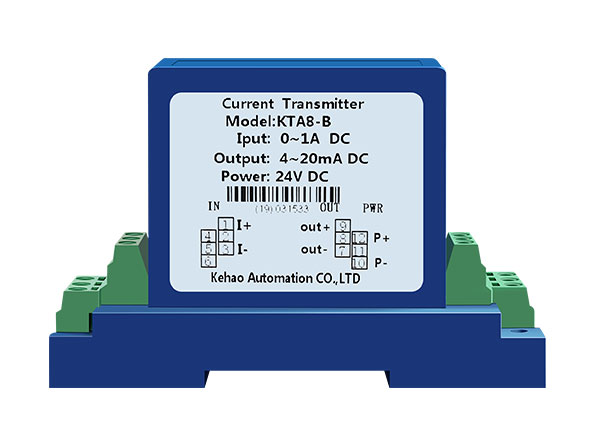

Current transmitter
Specification Accuracy 0.5% Linearity 0.1% Power DC12-24V / AC 110-220V Measure 10A、50A、100A、。。。。。。。。。1000A Way Wiring type Output 4~20mA or other Overload capacity 10x nominal input Introduction The current transmitter can directly convert the AC or DC current of the tested main circuit into a DC4-20mA constant current loop standard signal output … -
The perforated current transmitter
Specification Accuracy 0.5% Linearity 0.1% Power DC12-24V / AC 110-220V Measure 10A、50A、100A、。。。。。。。。。1000A Way Wiring type Output 4~20mA or other Overload capacity 10x nominal input Aperture 22mm / 33mm Introduction The perforated current transmitter can directly convert the AC or DC current of the tested main circuit into a DC4-20mA constant … -

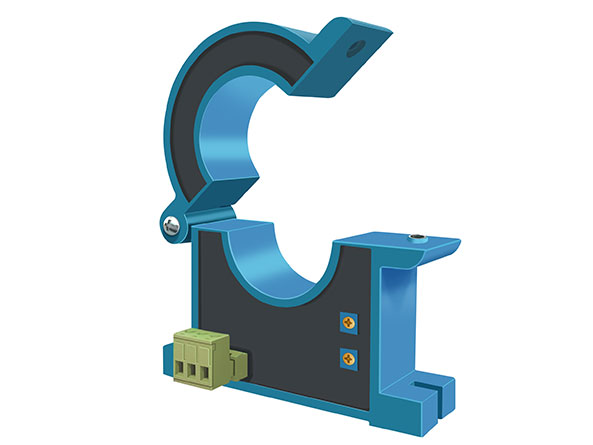

The open close current transmitter
Specification Accuracy 0.5% Linearity 0.1% Power DC12-24V / AC 110-220V Measure 10A、50A、100A、。。。。。。。。。1000A Way Wiring type Output 4~20mA or other Overload capacity 10x nominal input Aperture 20mm / 25mm / 38mm / 50mm Introduction The open close current transmitter can directly convert the AC or DC current of the tested main … -

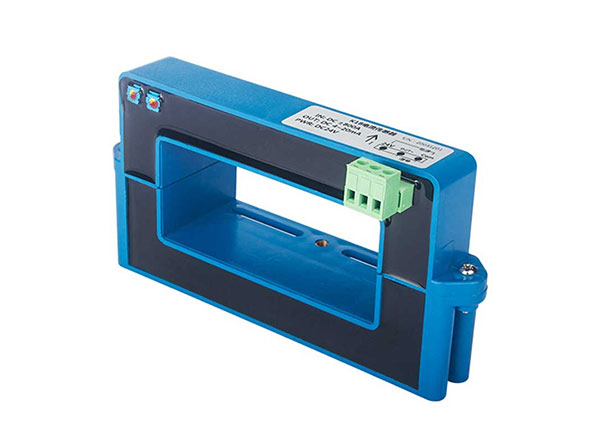

Large range current transmitter
Specification Accuracy 0.5% Linearity 0.1% Power DC12-24V / AC 110-220V Measure 10A、50A、100A、。。。。。。。。。2000A Way Wiring type Output 4~20mA or other Overload capacity 10x nominal input Aperture 100×40 mm or other Introduction The open close current transmitter can directly convert the AC or DC current of the tested main circuit into … -

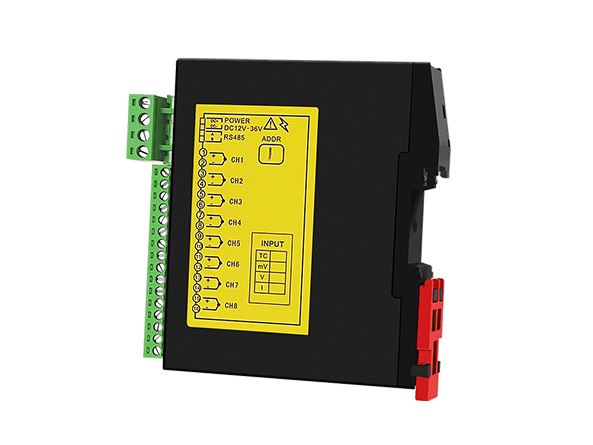

Acquisition module
Specification thermocouples K, S, E, J, T, B, N, R, WRe325, WRe526 Linear voltage 0-5V, 1-5V, etc Linear current 0-10mA, 4-20mA Accuracy 0.2%FS±2.0℃ Sampling period 1s Output RS485 Linear input -999~+9999 User defined Introduction 4 or 8 channel analog input acquisition module Can collect voltage and current Equal analog input … -

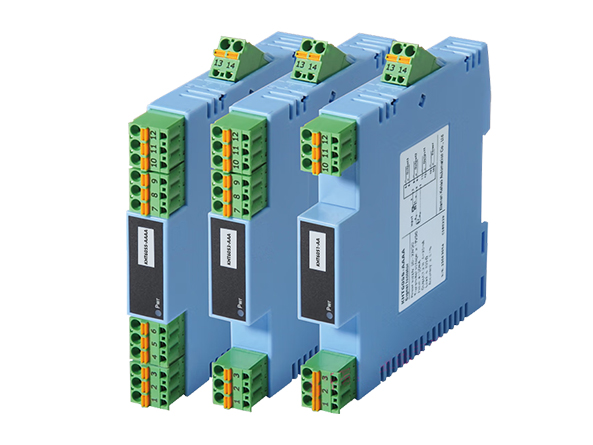

Distribution or current input isolator
Specification Input 4-20mA Output 4-20mA or 1-5V Response time <10ms Accuracy ± 0.1% Isolation capability 2.5KV, 1min, 50Hz between input output power supply Protection grade IP20 Introduction Power distribution or current input isolator, which converts and outputs input signals. The input, output, and working power supply are isolated from each … -

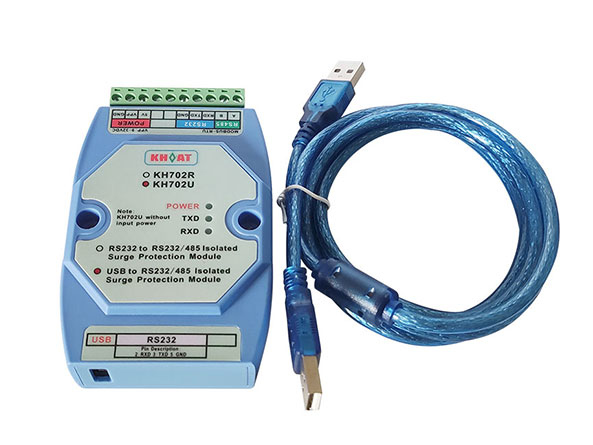

Photoelectric isolation converter
Specification Baud 11520bps Sampling period 0.5s Power +9~+32V Protect 600W Lightning protection surge resistance Interface RS485/RS232/USB Electrical interface DB9 hole wire connection Introduction Power distribution or current input isolator, which converts and outputs input signals. The input, output, and working power supply are isolated from each other, making them particularly …
