Introduction

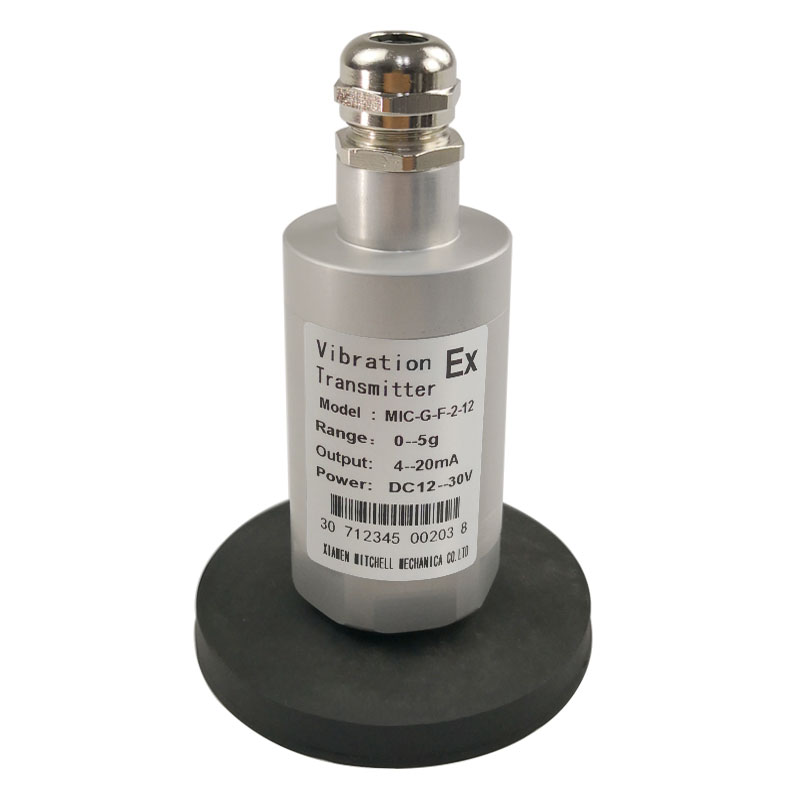

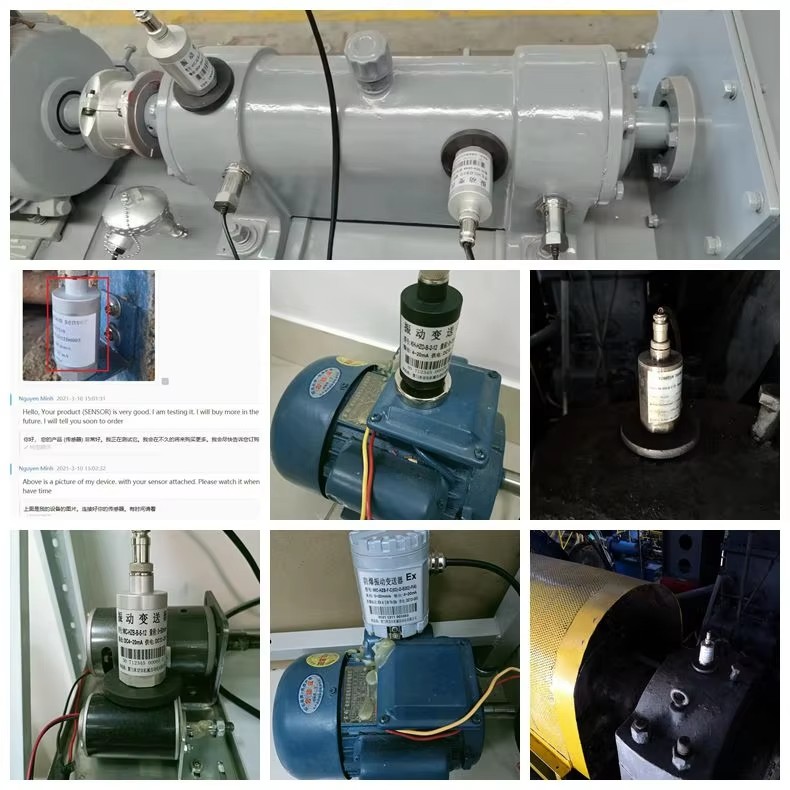

Mini Industrial Integrated Analog 4-20mA Piezoelectric Vibration Accelerometer Sensor Transmitter with Wide Frequency, Be Mounted on the bearing cover of rotating machines, the transmitter is an ideal choice for steam turbine,
compressors, motors, blower, fans, water pump etc to measure vibration speed or vibration amplitude. The sensor can be used widely in heating and power plant, cement plant, machine plant, blower plant, paper made plant, coal mine machine etc.
KH-ZD Selection of Piezoelectric Integrated Vibration Transmitter
KH-ZD-□-C□□-D□□-E□□-F□□
| ZD Type | C measuring range | D Thread | E Wire length | F Output |
| B (Non explosion-proof） F |
V: 01: 0~10mm/s 02: 0~20mm/s 03: 0~30mm/s ……… D: 11: 0~100um 12: 0~200um 13: 0~300um …….. |
11: M8*1.25 12: M10*1.0 13: M5*0.8 14: 1/4~28 15:Other |
01: 1m 02: 2m 03: 3m …………. |
4:4-20mA (default) S:RS485 |
For example：KH-ZD-B -C(V02）-D(11）-E(02）-F(4) -T(1)
Meaning: Type of measurement – – non-explosion-proof,
Measuring range – – 0-20mm/s
Installation mode – – M8 *1.25
Cable length – – 2 meters
Output – -Vibration: 4-20mA;

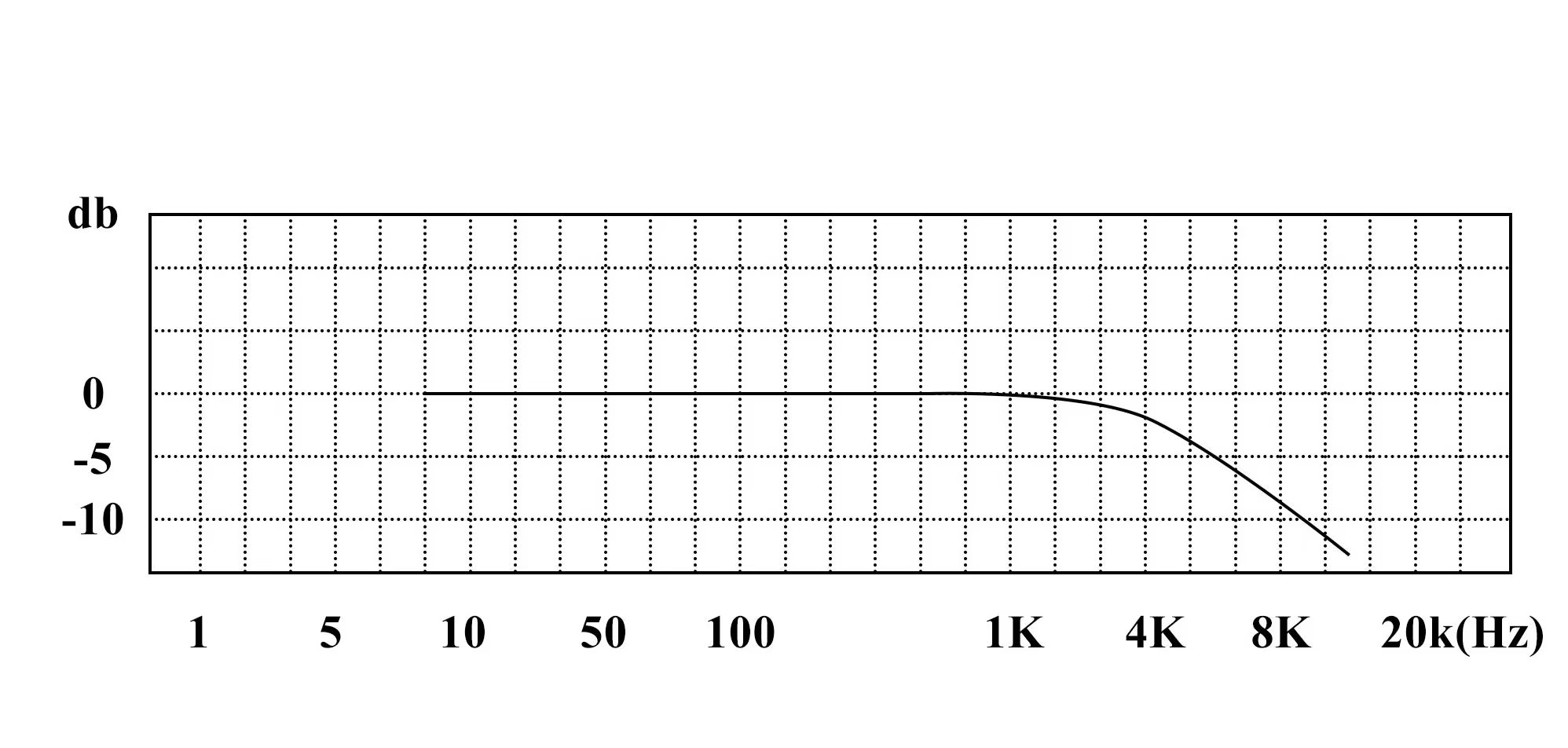

| Frequency Response | 0-1000Hz |
| Measuring Range | 0-10mm/s; 0-20mm/s; 0-30.0mm/s; 0-40.0mm/s; 0-50.0mm/s; other |
| Signal Output | 4-20mA (default when order) or RS485 |
| Output Impedance | ≤500 |
| Power supply | DC24V |
| Max acceleration | 50g |

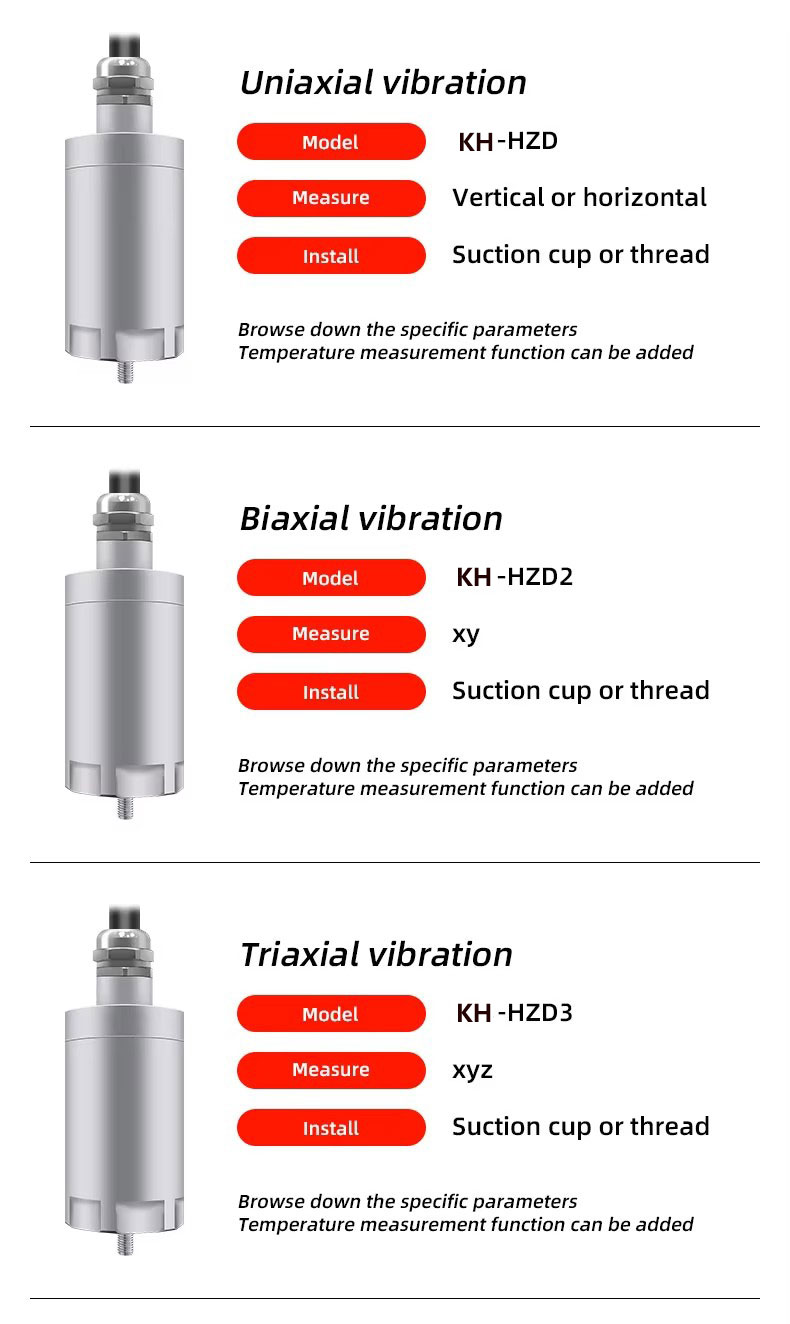

| Measurement Direction | vertical or horizontal |
| Mounting method | vertical or horizontal mounted on the measured vibrating point |

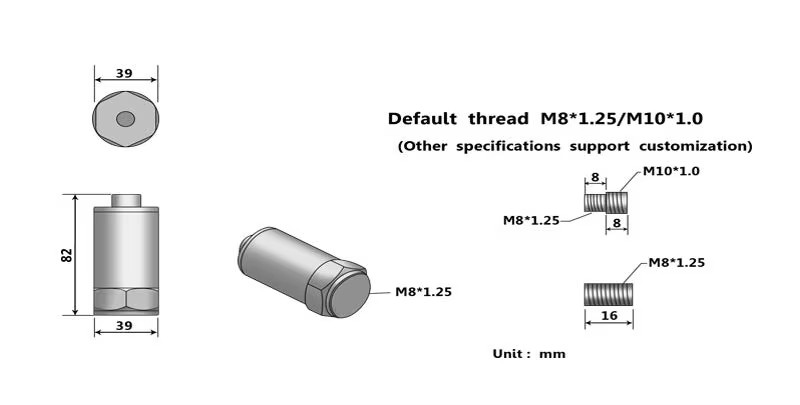

| Mounting thread | Thread（M8*1.25）or Other |
| Ambient Temperature | -40℃ to 85℃ |
| Size | φ39×82mm |
| Weight | About 200g |
