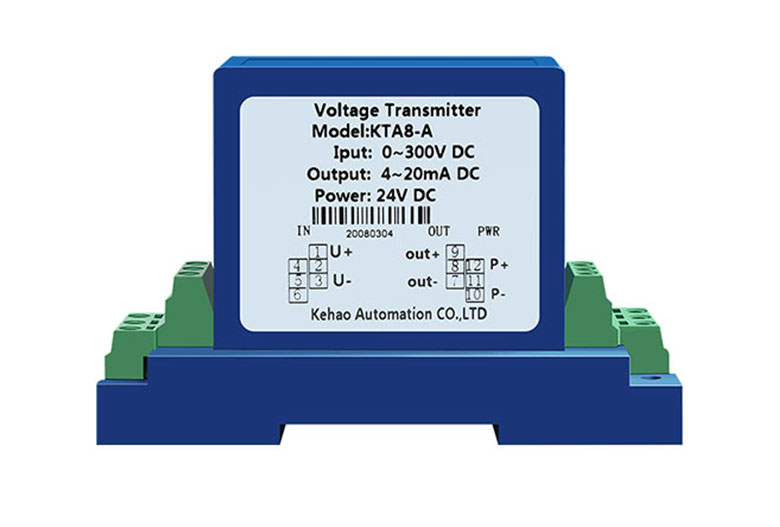

Voltage transmitter
Specification
|
Accuracy |
0.5% |
|
Linearity |
0.1% |
|
Power |
DC12-24V / AC 110-220V |
|
Measure |
0V~1200V |
|
Way |
Wiring type |
|
Output |
4~20mA or other |
|
Overload capacity |
2x nominal input sustainable |
Introduction
A device that converts the measured AC voltage, DC voltage, and pulse voltage into a linear proportional output of DC voltage or DC current, and isolates the output of analog or digital signals.

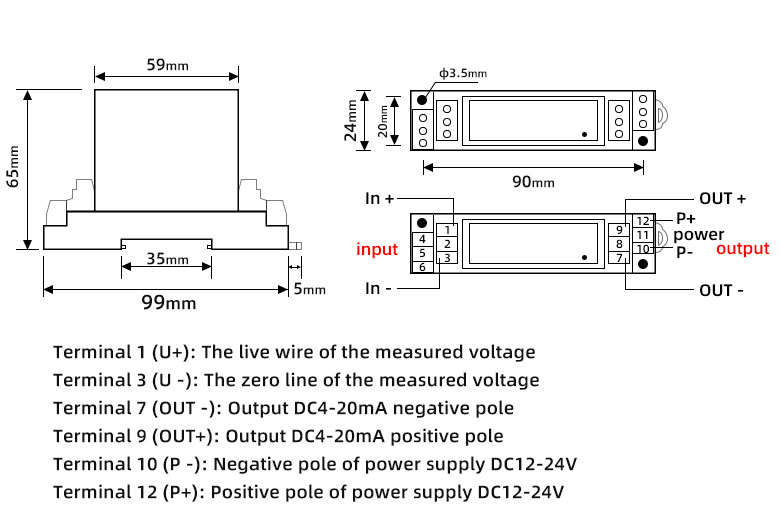

size
install
