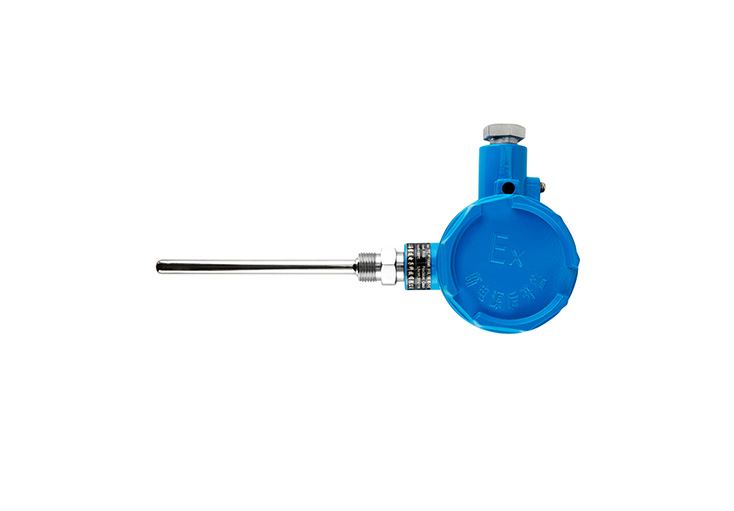

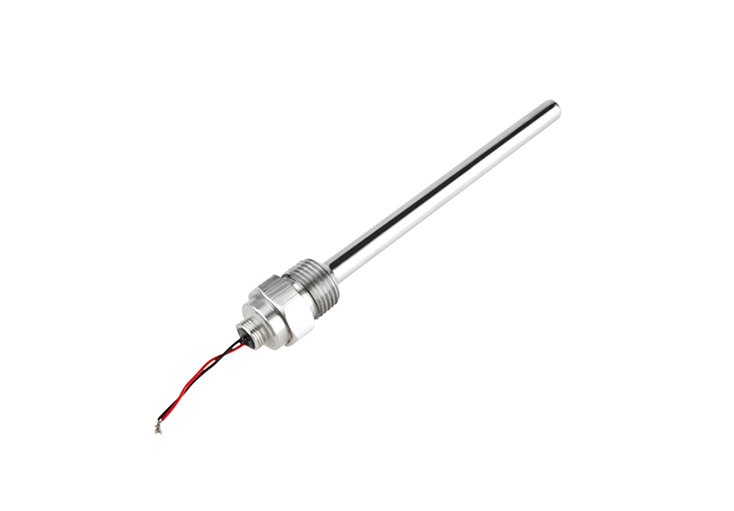

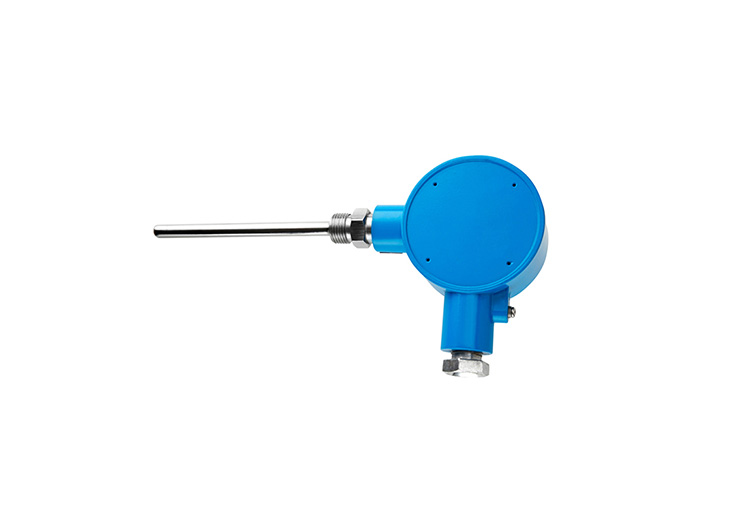

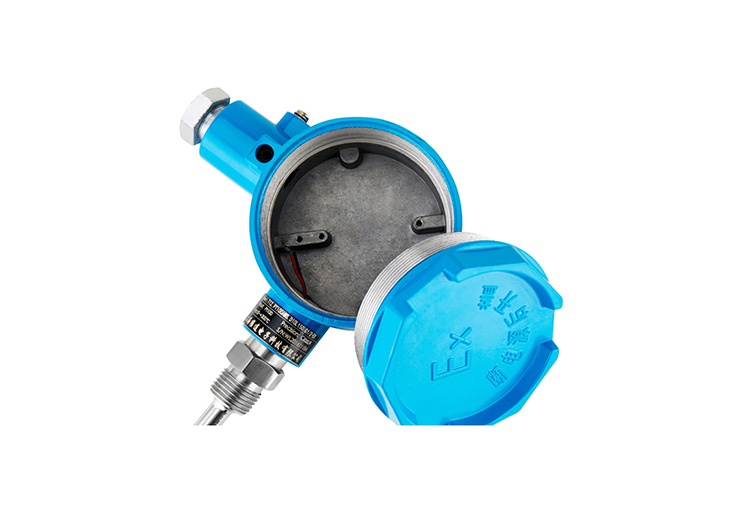

Threaded explosion-proof thermocouple temperature sensor
The fixed threaded explosion-proof thermocouple is a temperature sensor that finds extensive application in industrial automation systems. Through this temperature sensor, the temperature parameters of the controlled object can be converted into electrical signals, which are then transmitted to display, recording, and regulating instruments for monitoring, adjusting, and controlling the system. It can directly measure the temperature of liquid, steam, and gaseous media, as well as solid surfaces, within the range of 0℃ to 1300℃ in various production processes.
Technical Parameters
| Product Feature | Technical Parameters |
|---|---|
| Thermocouple Type | K, J, N, T, S, E, etc. (optional) |
| Temperature Range | 0°C ~ +1300°C |
| Medium Compatibility | Gas, liquid, etc. |
| Housing Material | Default: SUS304 (SUS316 available for customization) |
| Terminal Box | Cast aluminum, SUS304, bakelite (optional) |
| Process Connection | Adjustable clamp screw mounting |
Product Selection
| Basic Model | Thermocouple Type | Temperature Range | Protection Tube Diameter | Protection Tube Length | Process Connection |
|---|---|---|---|---|---|
| KH12 | K=K
J=J N=N S=S T=T E=E |
L=-200°C~+150°C
M=-50°C~+300°C H=-50°C~+600°C |
D (mm) | L (mm) | M |
| Example | K | L | 12mm | 100mm |
Product schematic diagram
