The open close current transmitter

Short Description:

Specification Accuracy  0.5% Linearity 0.1% Power DC12-24V  /  AC 110-220V Measure 10A、50A、100A、。。。。。。。。。1000A Way Wiring type Output 4~20mA or other Overload capacity 10x nominal input Aperture 20mm  /  25mm  /  38mm  /  50mm Introduction The open close current transmitter can directly convert the AC or DC current of the tested main …

Product Detail

Product Tags

Specification

Accuracy

 0.5%

Linearity

0.1%

Power

DC12-24V  /  AC 110-220V

Measure

10A、50A、100A、。。。。。。。。。1000A

Way

Wiring type

Output

4~20mA or other

Overload capacity

10x nominal input

Aperture

20mm  /  25mm  /  38mm  /  50mm

Introduction

The open close current transmitter can directly convert the AC or DC current of the tested main circuit into a DC4-20mA constant current loop standard signal output in a linear proportion, and continuously transmit it to the receiving device

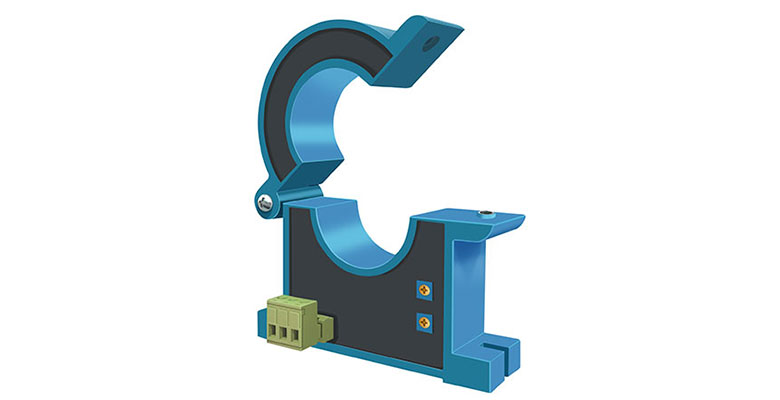

The open close current transmitter(pic1)

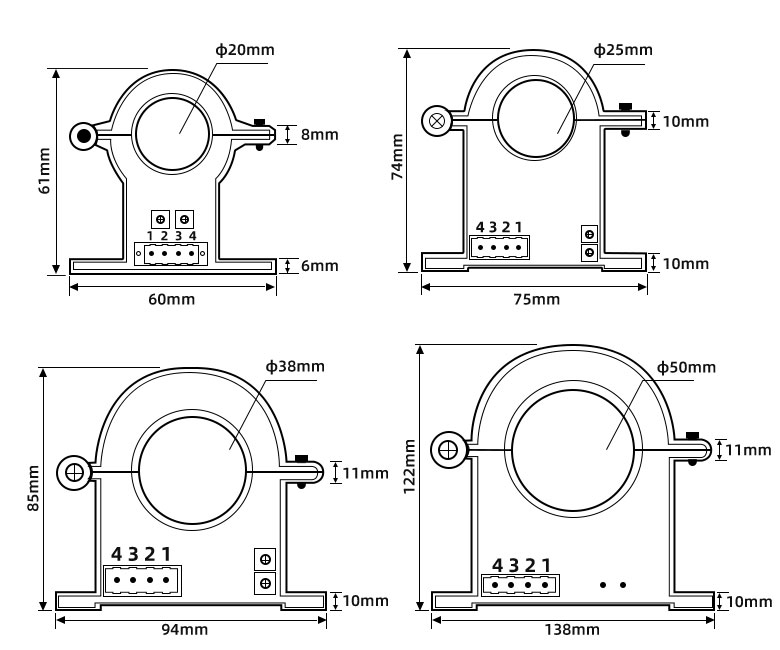

size

The open close current transmitter(pic2)

install
