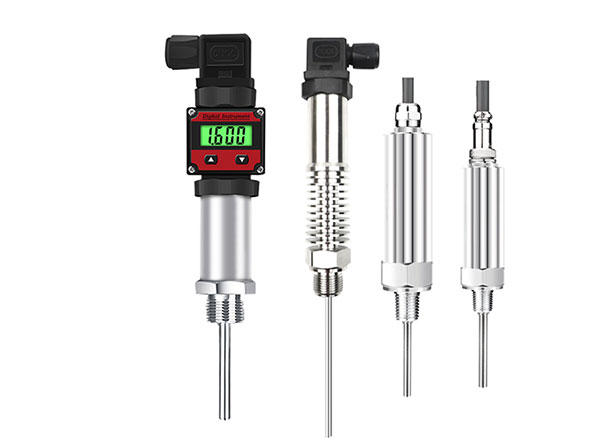

PT100 Integrated Temperature Transmitter Sensor Module DC 4-20mA Sensor
Specification
|
Range |
-50~600℃ |
|
Accuracy |
0.5% / 0.3% / 0.1% |
|
Material |
304 stainless steel |
|
Process connection |
M16x1.5 / M20x1.5 / M27x2 （other） |
|
Stem insertion length |
Customized length |
|
Explosion-proof class |
Exia II CT6 |
|
Output signal |
4-20mA / 1~5V / 0~5V/ RS485 |
|
Power supply |
24VDC (Option: 12VDC) |
|
Measuring elements |
Pt 100 Pt 1000 (option) |
If temperature range over 100℃ must install a cooling fin
Introduction
temperature transmitter consists of Pt100 temperature sensor, compensation circuit and switching circuits. It features high stability, temperature sensitivity and reliability. The integrated structure and all-welded design ensure easy installation in most field applications. suitable for liquid and gas temperature monitor and measurement in industrial process control system

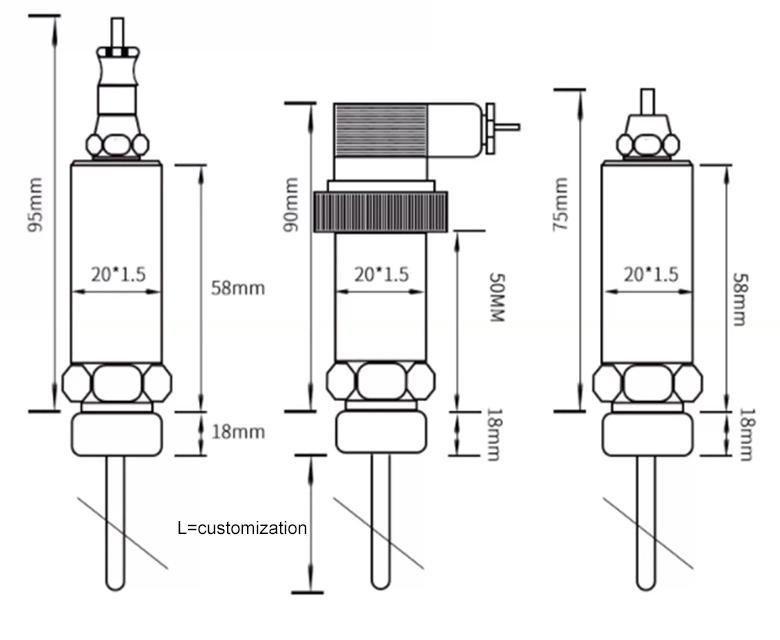

Size

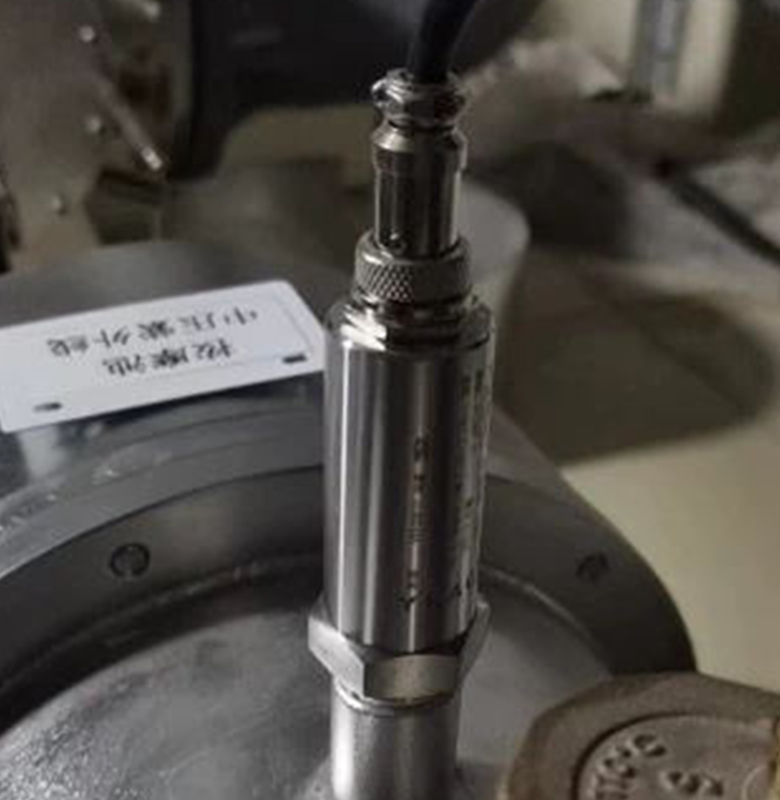

install
