Product Name

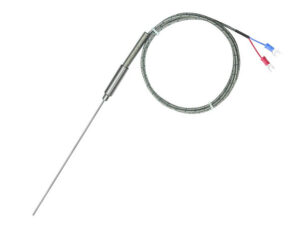

Probe-type K-type thermocouple

Model

WRNT-KH-035

Thermocouple Type

K (default), E, J, T, Pt100, etc.

Measurement Range

• K type: 0-600°C
• E type: 0-400°C
• Pt100: -50+420°C

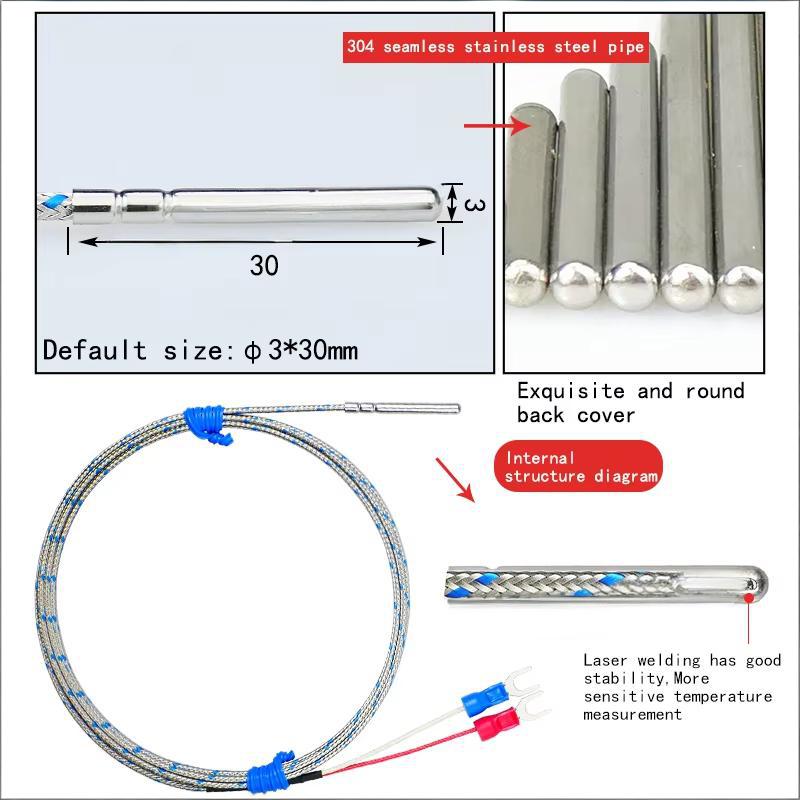

Protection Tube Material

304 Stainless Steel

Protection Tube Diameter

4mm (default), with optional custom diameters including 3mm, 5mm, 6mm, etc.

Protection Tube Length

30mm (default), with optional custom lengths including 10/15/20/40/50/60/70/80/90/100/150/200mm, etc.

Grounding

Non-grounded type (commonly known as insulated or isolated type), ensuring accurate and stable temperature measurement without external interference.

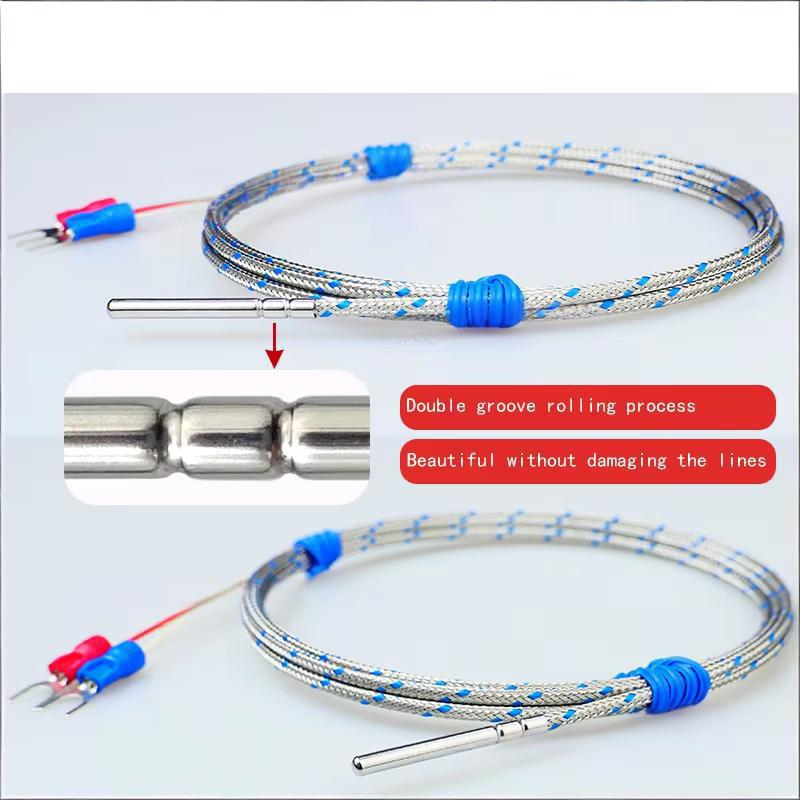

Wire Material

Standard 2*0.4mm Class 1 metering temperature measurement wire with an outer precision braided shield layer.

Wire Length

0.5m/1m/1.5m/2m/3m… Custom lengths available upon request.

Terminal

U-type terminal (default), with optional custom terminals such as pin terminals, small yellow plugs, aviation plugs, etc.
