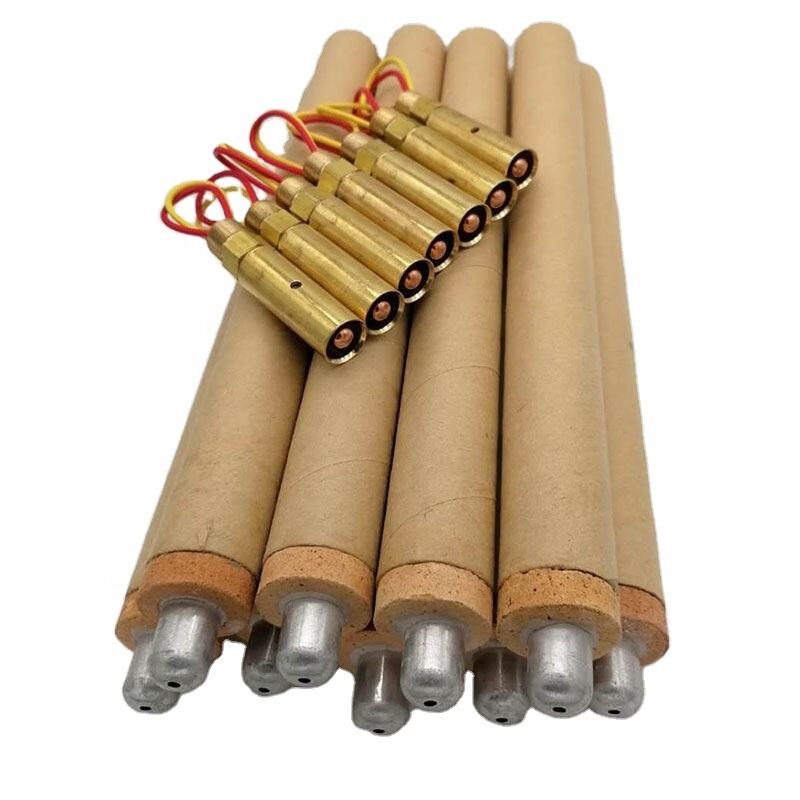

Paper Tube 602 Round Connector S Type Fast Disposable Expendable Thermocouple
Product Description
S type expendable thermocouple are used for measurement of molten metal temperatures. We manufacture a variety of models for various requirements, KB, KR, KS and KW (4 Types) and ceramic body – male connector type.
All these models use different connectors (either Female Type or Male-Female Type) and use paper tubes with different Inner diameters.
The Thermocouple tips are available in a range of calibrations.
|
Name
|
Fast thermocouple
|
|
Type
|
S/B/R/WRe3/25
|
|
Length
|
300mm–1800mm
|
|
Wire accuracy
|
Palladium point(1554°C)
(P)+/-3°C (J)+/-1.5°C
|
|
Protect cap
|
Al or SS
|
|
Achievement rate
|
≥98%
|
|
Response time
|
≤5s
|

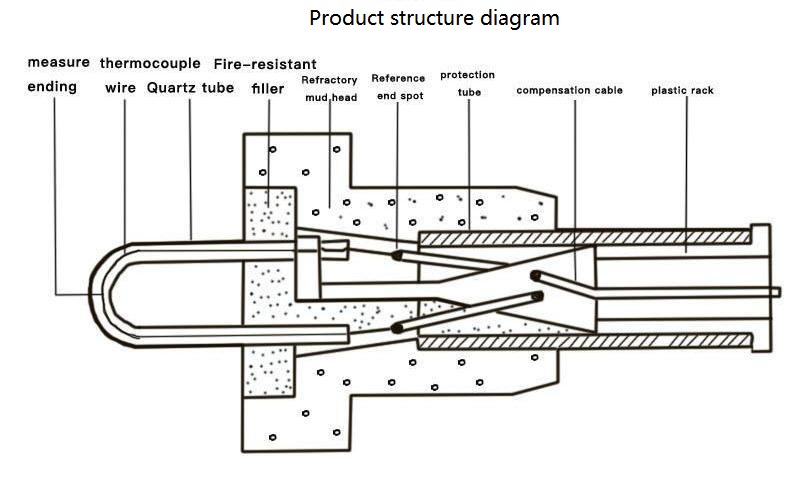

Product Structure
The fast thermocouple mainly consists of a temperature measuring thermocouple head and a large paper tube.
The couple head mainly consists of positive and negative couple wires welded onto the compensation wire, which is embedded in the bracket. The bracket is covered with a small paper tube, and the couple wires are supported and protected by quartz.
Equipped with an anti slag cap on the outside, all components are concentrated in the mud head and glued together with a fire-resistant filler to form a whole, which cannot be disassembled, so it is disposable.
