LED digital display diffused silicon pressure transmitter with
Specification
|
Range |
-100kpa~4kpa~100Mpa |
|
Type |
Gauge pressure, absolute pressure, sealed |
|
Output |
0~5V 、1~5V、0~10V、4~20mA |
|
Compensation temperature |
-10~70℃ |
|
Operation temperature |
-20~85℃ |
|
Pressure overload |
0.035…10MPa（150%FS）10…60MPa（125%FS） |
|
Power |
10-32V (4…20mA);12-32V (0…10V);8-32V (RS485) |
Introduction
LED digital display diffused silicon pressure transmitter with 4-20mA, 0-5V, 0-10V output accuracy of 0.2 level

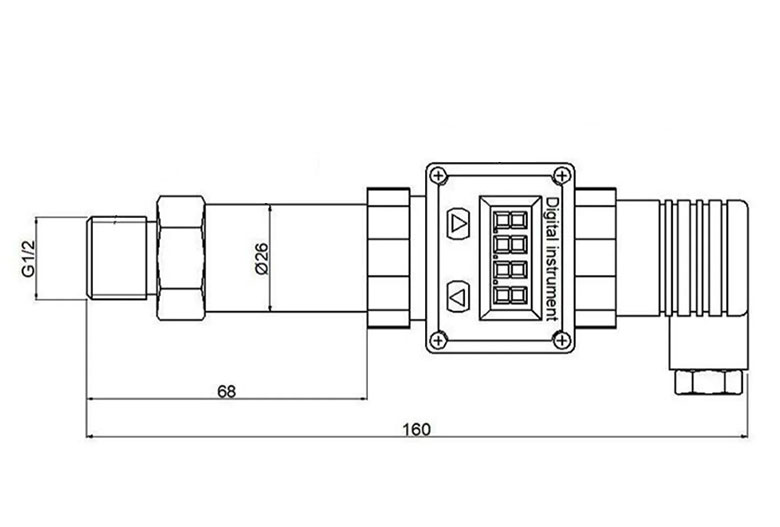

size
install
