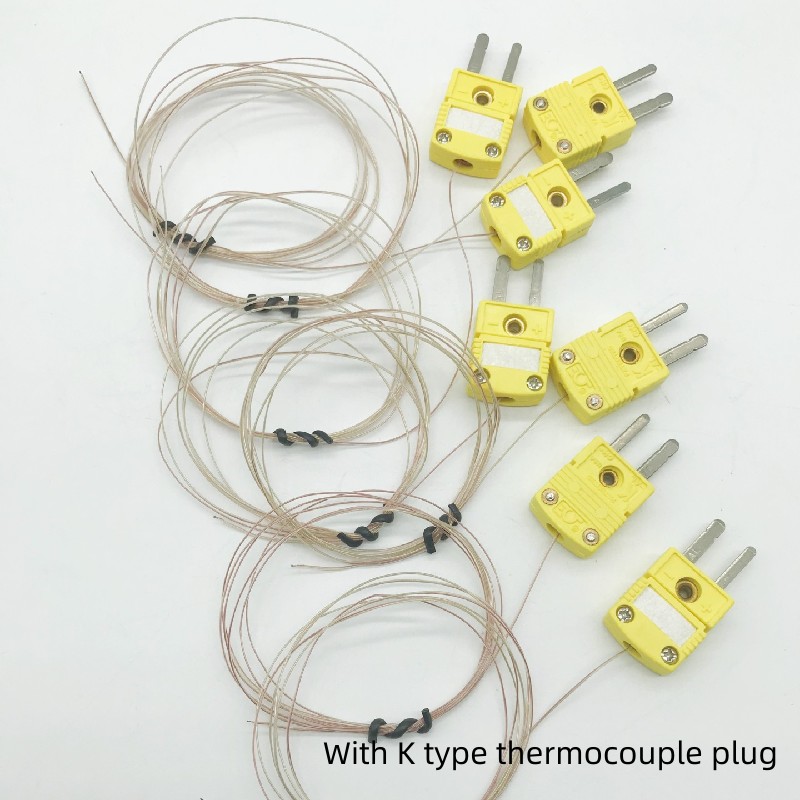

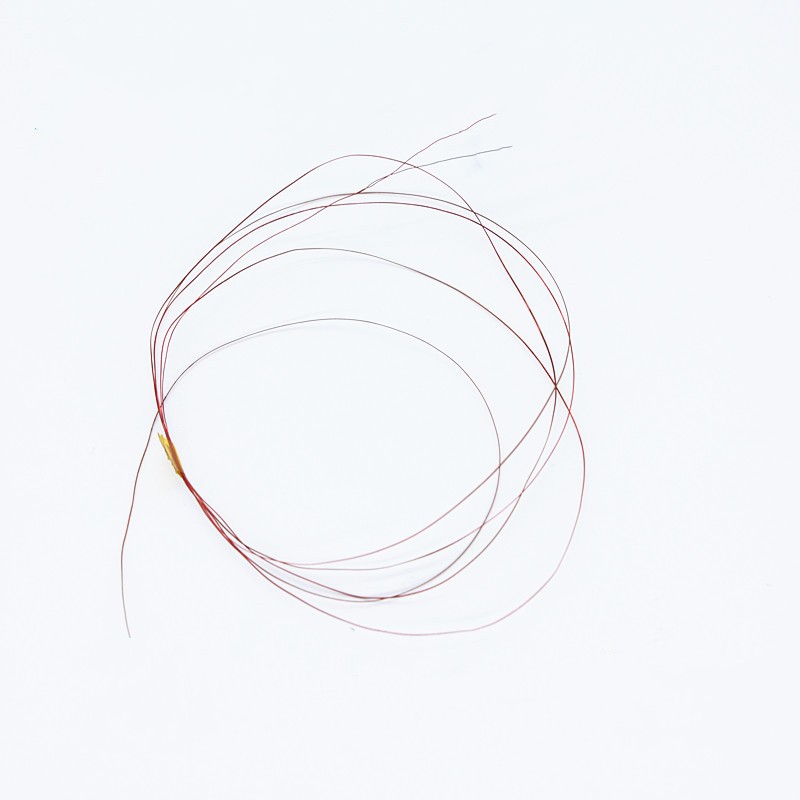

K T type Ultra-fine thermocouple wire connector temperature sensor
Customized：
Provide relevant parameters to us, we support non-standard customization and provide professional design services.
|
Tpye
|
K/E/J/T/N/B/S/PT100
|
|
Probe diameter
|
0.5mm-22mm
|
|
Probe length
|
0.5mm-300mm
|
|
Probe material
|
304 stainless steel (default), can be customized corrosion resistant 316 material or high temperature resistant 2520/3039
material. |
|
Cable material:
|
Shielded high-temperature wire,Teflon PTEE,Fiberglass,silicon（waterproof）
|
|
Cable length:
|
0.5M-20M(customized)
|
|
Accuracy level
|
Class A /Class B
|
|
Wire
|
2 wire ,3 wire ,4 wire option
|
|
Measuring temperature:
|
thermocouple:0-1600℃ RTD:-200-500℃
|
|
Requirements above 1000 °C need to be customized 2520 or 3039 high temperature material, in addition, the thicker the diameter of
the probe, the higher the temperature resistance. |
|
|
thread
|
M6,M8,M10,M12,M16,M20,M27,W1/4,PT1/8,PT1/4,etc.
|
