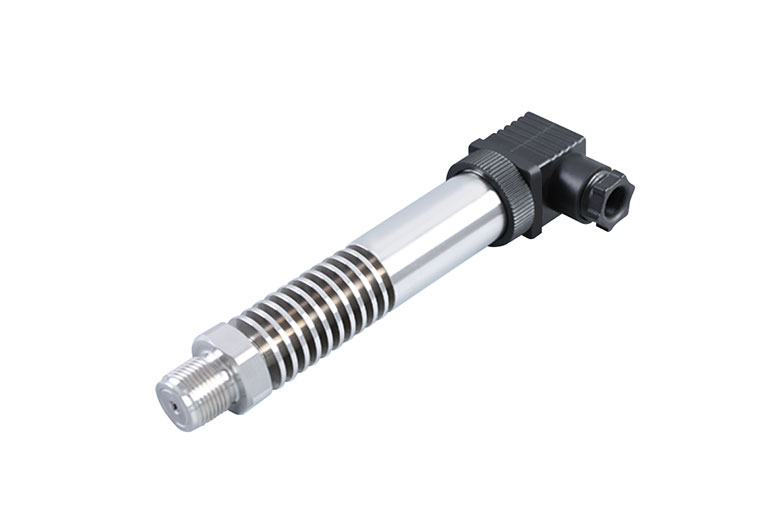

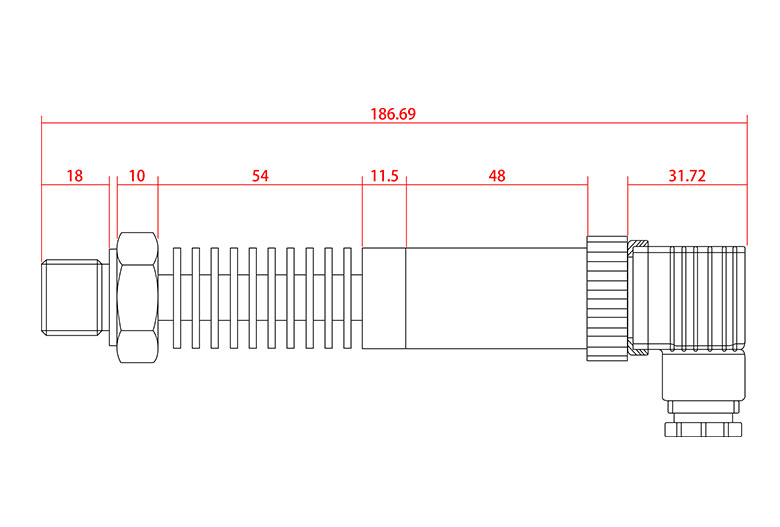

Specification Range -100kpa~0-20kpa~100Mpa Type Gauge pressure, absolute pressure, sealed Output 0~5V 、1~5V、0~10V、4~20mA Compensation temperature -20~85℃ Operation temperature -40~300℃ Overload pressure 0.035…10MPa（150%FS）10…60MPa（125%FS） Power 10-32V（4…20mA）；12-32V（0…10V）；8-32V（RS485） Introduction High temperature pressure transmitter, steam pressure transmitter, oil pressure transmitter, diffusion silicon Pressure sensor size install
