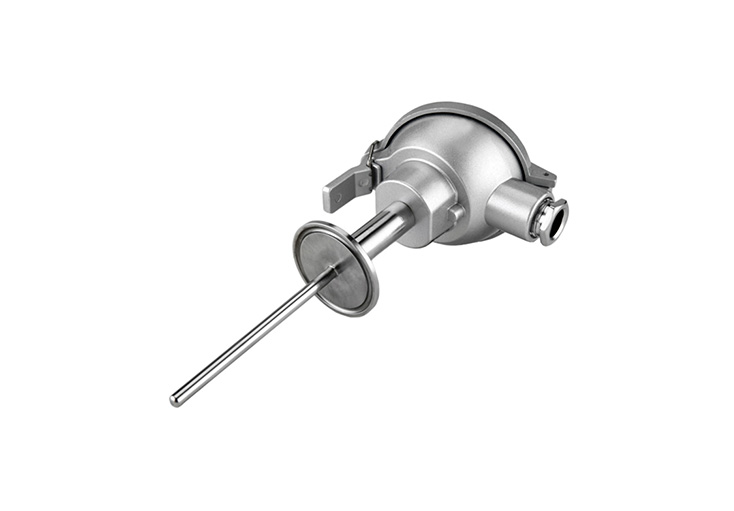

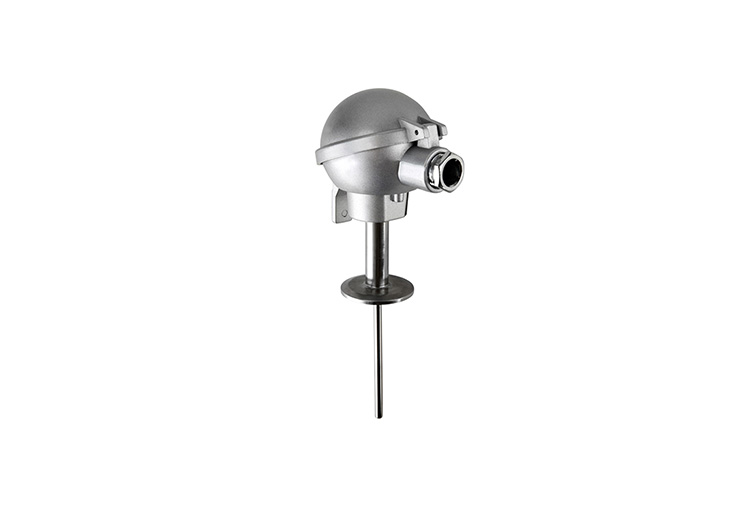

Flange-type assembled thermocouple
Prefabricated thermocouples are key components in industrial temperature measurement, operating based on the Seebeck effect. They are sturdy and durable, suitable for harsh environments ranging from 0°C to 1800°C. Type K is the most commonly used due to its high cost-performance ratio. When selecting a model, factors such as temperature, medium, and pressure must be considered to ensure accurate temperature measurement and long-term use
Technical Parameters
| Product Feature | Technical Parameters |
|---|---|
| Thermocouple Type | K, J, N, T, S, E, etc. (optional) |
| Temperature Range | 0°C ~ +1800°C |
| Applicable Medium | Gas, liquid, etc. |
| Housing Material | Default: SUS304 (SUS316 available for customization) |
| Terminal Box | Cast aluminum, SUS304, bakelite (optional) |
| Process Connection | Flange mounting |
Product Selection
| Basic Model | Thermocouple Type | Temperature Range | Protection Tube Diameter | Protection Tube Length | Process Connection |
|---|---|---|---|---|---|
| KH11 | K=K
J=J N=N S=S T=T E=E |
L=-200°C~+150°C
M=-50°C~+300°C H=-50°C~+600°C |
D (mm) | L (mm) | DN |
| Example | K | L | 6mm | 100mm | DN |
Product schematic diagram
